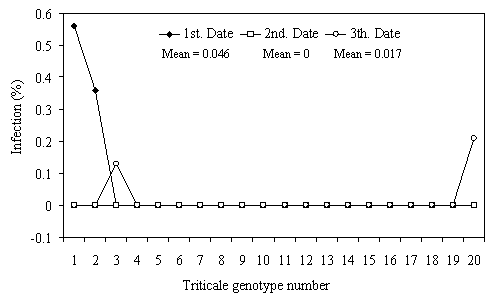

Fig. 8. (above) Percentage of infection with Karnal bunt of 20 triticale (X Triticosecale) genotypes artificially inoculated on three dates during in the field during the 2004-05 crop cycle in the Yaqui Valley, Sonora, Mexico.

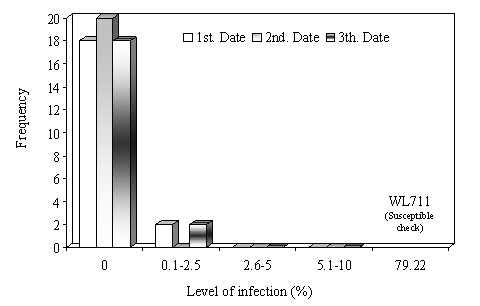

(below) Results of artificial field inoculation in three dates with Karnal bunt of 20 triticale (X Triticosecale) genotypes in the Yaqui valley, Sonora, Mexico, during the crop cycle 2004-05. The level of infection of WL711 is the mean of the three highest infection scores.
